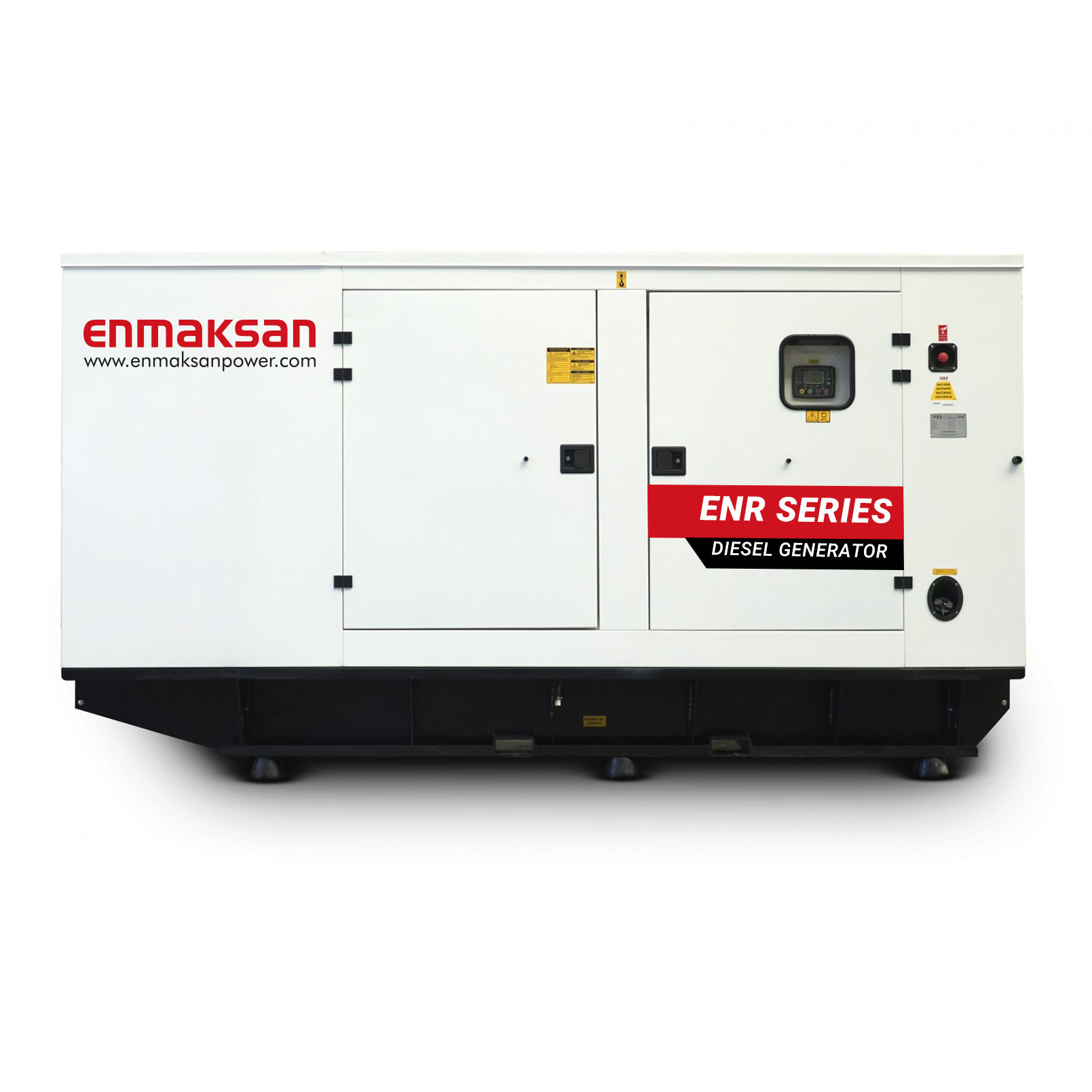

| Genset Brand | Enmaksan Power | |
| Genset Model | EN220R | |
| Standby Power | kVA | 220 |
| Prime Power | kVA | 200 |
| Frequency | Hz | 50 |
| Voltage | V | 230/400 |
| Phase | 3 | |
| Fuel | Diesel | |
| Control Panel | Datakom 500 | |
| Country of Origin | Turkey |
| Engine Brand | RICARDO | |
| Engine Model | R6113AZLD | |
| Standby Power | kWm | 189 |
| Prime Power | kWm | 175 |
| Fuel Type | Diesel | |
| Number of Cylinders and Type | 6 – Vertical In Line | |
| Bore x Stroke | mm | 113×125 |
| Total Displacement | L | 7,52 |
| Aspiration | Turbocharged /Aftercooler | |
| Compression Ratio | 18:1 | |
| Rated Speed | rpm | 1500 |
| Injection Type and System | Direct injection | |
| Governor System | Mechanics/Electronics | |
| Operating Voltage | Vdc | 12 |
| Cooling System | Water Cooled | |
| Air Filter Type | Dry Type |
| Maranello | M220 |
Dimensions Without Canopy and Weight |
||
| L x W x H | mm | 2600x1100x1940 |
| Weight | kg | 1875 |
| Fuel Tank Capacity | kg | 360 |
Dimensions With Canopy and Weight |
||
| L x W x H | mm | 3500x1100x2240 |
| Weight | kg | 2100 |
| Fuel Tank Capacity | lt | 360 |
| Desibel | db(A) | 65-75 |
