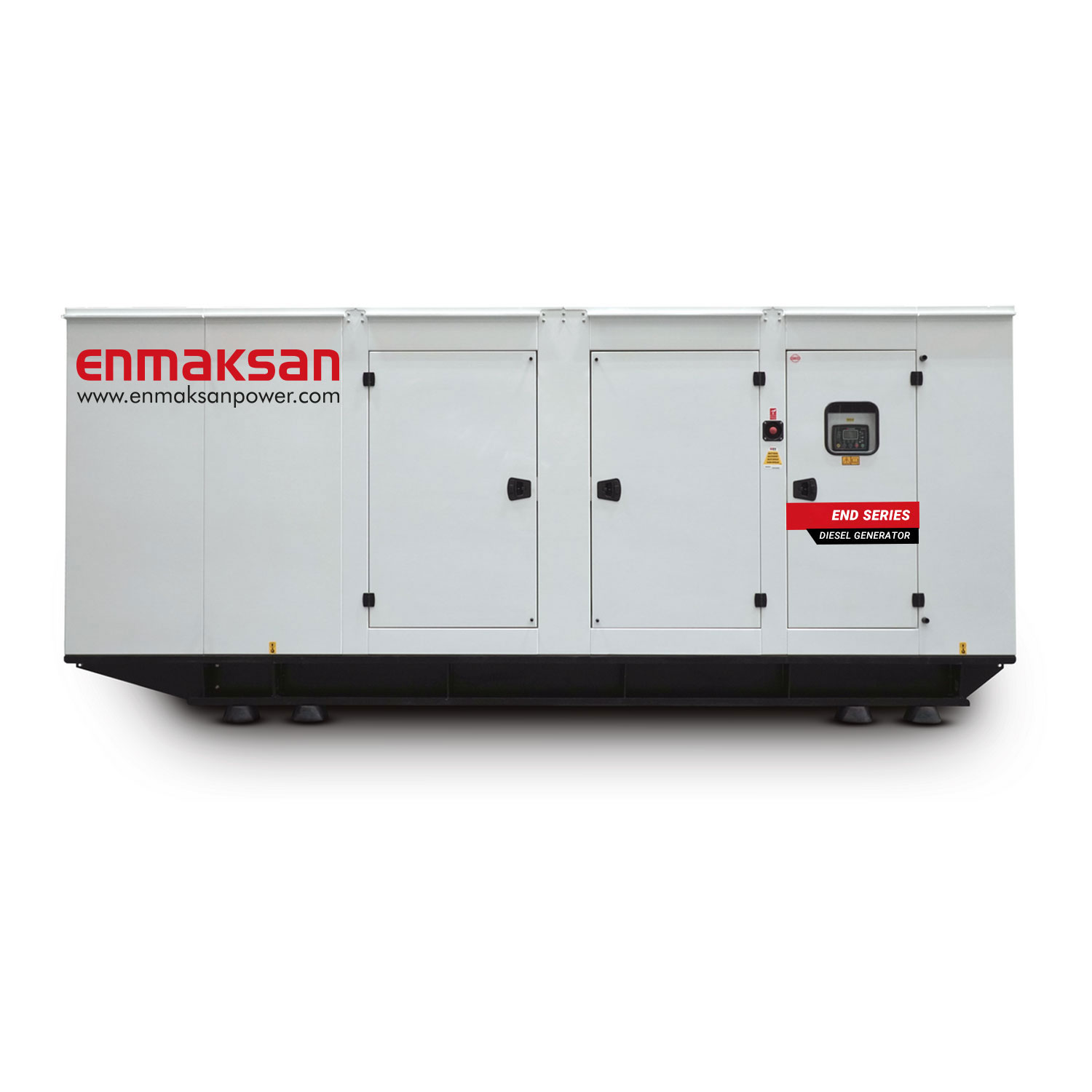

| Genset Brand | Enmaksan Power | |
| Genset Model | EN59D | |
| Standby Power | kVA | 580 |
| Prime Power | kVA | 525 |
| Frequency | Hz | 50 |
| Voltage | V | 230/400 |
| Phase | 3 | |
| Fuel | Diesel | |
| Control Panel | Datakom 500 | |
| Country of Origin | Turkey |
| Engine Brand | DOOSAN | |
| Engine Model | DP180LA | |
| Standby Power | kWm/1500 rpm | 536 |
| Prime Power | kWm/1500 rpm | 486 |
| Fuel Type | Diesel | |
| Number of Cylinders and Type | V-10 | |
| Bore x Stroke | mm | 128X142 |
| Total Displacement | L | 18,273 |
| Aspiration | Turbo Charged and Intercooled (Air to Air) | |
| Compression Ratio | 15:1 | |
| Rated Speed | rpm | 1500 |
| Injection Type and System | Indirect injection | |
| Governor System | kg | Electronics |
| Operating Voltage | Vdc | 24 |
| Cooling System | Water Cooled | |
| Air Filter Type | Dry Type |
| Maranello | M600 |
Dimensions Without Canopy and Weight |
||
| L x W x H | mm | TBA |
| Weight | kg | TBA |
| Fuel Tank Capacity | kg | TBA |
Dimensions With Canopy and Weight |
||
| L x W x H | mm | TBA |
| Weight | kg | TBA |
| Fuel Tank Capacity | lt | TBA |
| Desibel | db(A) | 65-75 |
